Tryclops
power. purity. health. the ultimate airborne pathogen defense

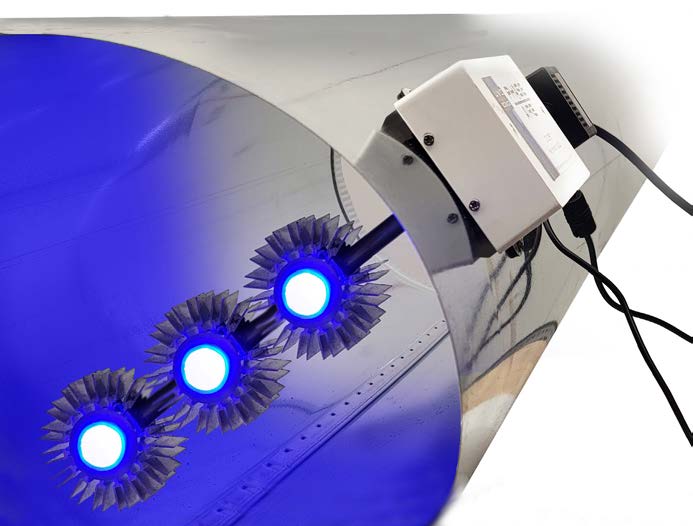

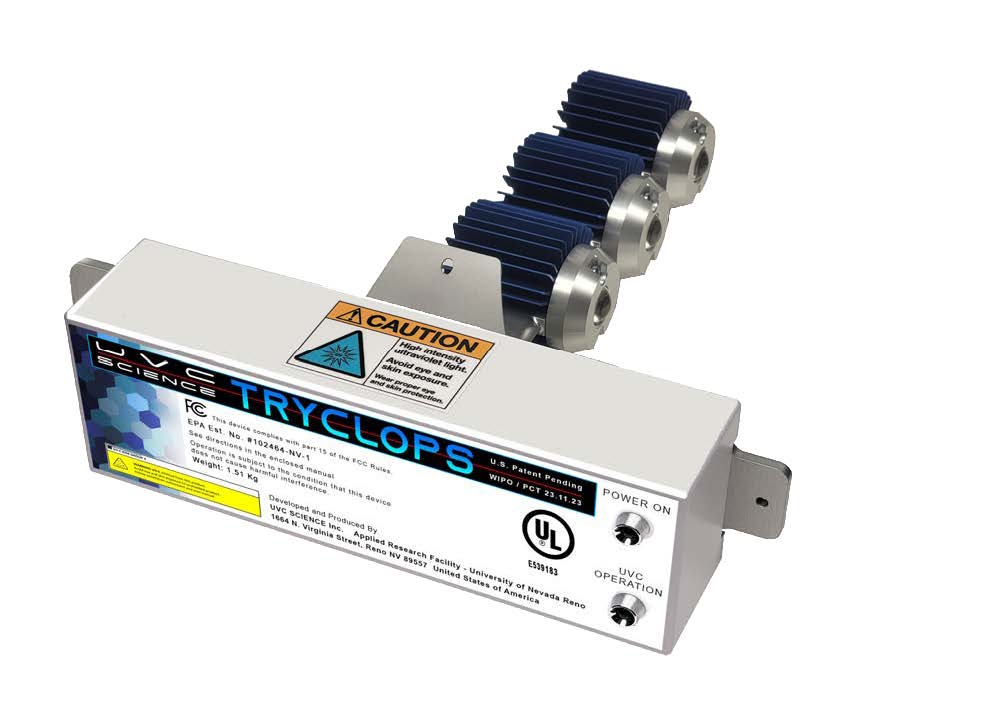

TheTryclops is a cutting-edge, in-duct mounted disinfection unit engineered to face upstream air flow, with a recommended minimum exposure length of 5 feet. This orientation enhances the unit’s disinfection efficancy by utilizing the collimating effect of air flow directed toward it.
The Tryclops unit has achieved ground breaking results, delivering scientifically validated UV-C dosages proven to rapidly and efficiently eradicates Bio Safety Level 1,2,3 and 4 airborne pathogens. Tested in a 1,980cu ft chamber(measuring 11’wide x 22’long x 8’ high), with the unit mounted approximately 8 feet from the source of nebulized air within a 10-inch metal duct the Tryclops demonstrated a 99.991% eradication of SARS-CoV2 and a 99.998% reduction of MRSA within one hour and astonishingly 81.46% gross reduction and a 76.49% net reduction of MRSA within the first 15 minutes. Unprecedented results achieved at an entirely new level.
This break through in Ultra Violet Germicidal Irradiation (UVGI) technology positions UVC Science, Inc. as the new leader in the revolutionary UVGI sector.
Disinfection times may vary based on duct size, unit positioning, and the distance of the treated area within the ducting run.
Specications
- UVC Source: 265 nm LED Diode
- Chip Rated 10,000 hours
- Circuitry: Solid State
- Ballast: None
- Tubes: None
- Electrical Rating: 24 VAC, 50/60 Hz,2A Maximum
- PowerInput: 24 VAC
- Note: Intended to be powered by a 24 VAC source from the air handler or a 40VA transformer (not supplied)
- Operating Temperature: -40°C (-40°F) to 100°C (212°F)
- Dimensions: Approx .9x3.5x1.75 in (22.86x8.89x4.45cm)
- Weight :3.3 lbs (1.5kg)
- Recommended Mounting: 5–10 feet up stream of on coming air flow in a return metal duct, 10–14 inches in diameter.
- Duct Material: For non-metallic ducts, ametalin-duct coupling (not included) is recommended to protect against potential damage
